Transposon age from a scored BED (RepeatMasker Alu)

We look at how old each Alu copy on human chromosome 1 is and where the young ones sit. RepeatMasker writes each copy's divergence from its subfamily consensus into a column of its annotation, and divergence accumulates with time, so the column is an age. One track plots that column as a bar per copy coloured by subfamily, counts the copies per bin once the view is too wide to show them, and draws a features-per-bin sidecar where the chromosome is too wide to fetch. A per-megabase count of the young copies then asks whether they follow the family's density, with a strand split beside it as the control. Every track is a mark display: a numeric column of any feature file becomes a plot with a JSON entry and no code.

Prerequisites#

• a JBrowse to open the figures' sessions in (Web or Desktop); every file here is a URL, so nothing needs hosting to read along
• htslib (bgzip, tabix), for the check at the end and for preparing your own file
• Node.js and the JBrowse CLI, for jbrowse make-density
• python3, standard library only, for the per-megabase counts
• bedGraphToBigWig from the UCSC utilities, which make-density runs

Where the data comes from#

The figures read UCSC's hg38 RepeatMasker table, rehosted on jbrowse.org with the Alu rows cut out, a density sidecar beside them, and the per-megabase counts built from those rows.

• RepeatMasker, UCSC's rmsk table as BED with a column header: https://jbrowse.org/ucsc/hg38/rmsk.bed.gz
• the Alu rows the figures open, with .tbi and .density.bw beside it: https://jbrowse.org/demos/gene_density/Alu.bed.gz
• the per-megabase counts and shares, with .tbi beside it: https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz
• reference lengths, for the sidecar's bigWig header: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.chrom.sizes
• the sequence: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.2bit

A column that is an age#

Alu is the commonest repeat in the human genome, a million-odd copies of a ~300 bp element that spread in waves: the AluJ subfamilies first, then AluS, then AluY, which is still inserting. RepeatMasker names each copy by the subfamily consensus it matches best and, in its milliDiv column, records how far the copy has drifted from that consensus, in tenths of a percent. Copies accumulate mutations at about the neutral rate once they land, so a copy's divergence is its age, and the subfamily name is a second, coarser reading of the same thing.

Nothing about the file is specific to repeats. What the track below needs from any file is:

• BED-like rows, bgzipped and tabix-indexed (quickstart covers the prep)
• a # header line naming the columns, so milliDiv is a field name and not "column twelve"
• a numeric column to plot, and optionally a second column to colour by

Each copy's divergence at a locus#

The track is a FeatureTrack over the BED whose display is a LinearMarkDisplay with one mark: a bar per feature, milliDiv on the y-axis. The colour is a categorical scale over the lineage, which the file does not carry as a column: a formula step in the mark's transform list writes the first four characters of the name into a lineage field, so AluSx1 and AluSz6 both read AluS. Listing the three lineages in domain fixes their legend order and their colours; FLAM and FRAM, the fossil monomers Alu descends from, get a grey.

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        }
      ]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        }
      ]
    }
  ]
}

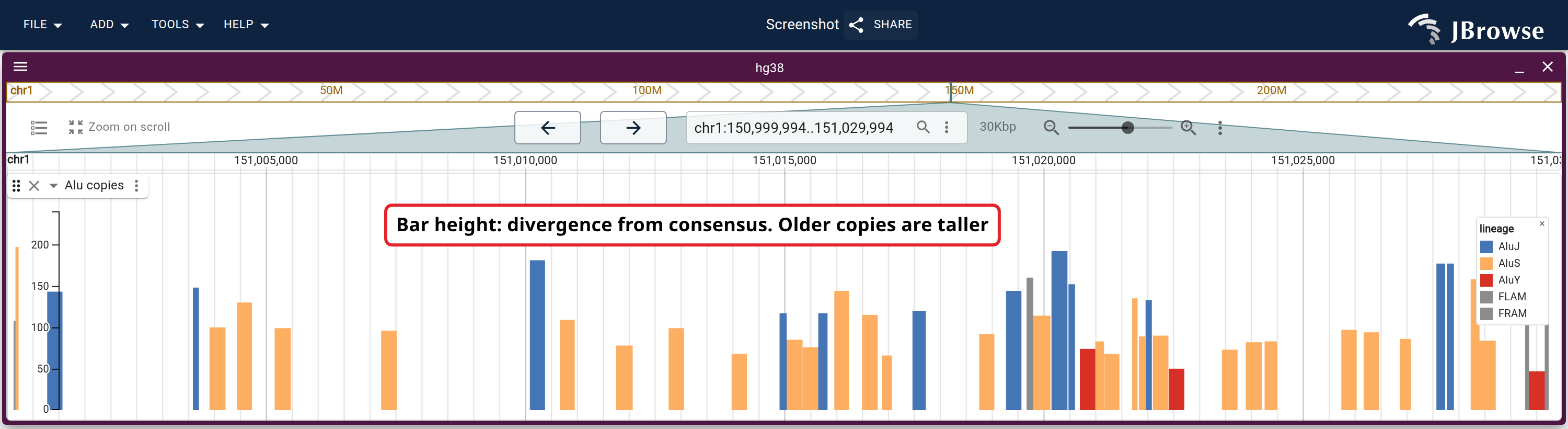

Open it on a few tens of kilobases of 1q21. Each bar is one copy, its width the copy's extent and its height the divergence, and the legend is the colour scale read back.

✕

Do it yourselfIn DesktopSession specIn a notebookWith an agent

The steps behind the figure above, run against your own data.

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses hg38, loaded from a .2bit genome.
2. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Alu copies”.
3. Drag the bar at the bottom edge of the track to resize it.
4. Type your region of interest into the location box and press Enter.This figure is at chr1:151,000,000-151,030,000.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

Copy

https://jbrowse.org/code/jb2/main/?config=test_data%2Falu_age%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr1%3A151%2C000%2C000-151%2C030%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22alu_age%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A200%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+alu_age%2Flocus

This session spec pastes after &session=spec- on any JBrowse Web instance.

Copy

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:151,000,000-151,030,000",
      "tracks": [
        {
          "trackId": "alu_age",
          "type": "LinearMarkDisplay",
          "height": 200
        }
      ]
    }
  ]
}

Loaded against config: test_data/alu_age/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

Copy

from jbrowse_anywidget import LinearGenomeView, fetch_hub

view = LinearGenomeView(
    assembly=fetch_hub("hg38"),
    location="chr1:151,000,000-151,030,000",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track",
    "name": "My track",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

Copy

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:151,000,000-151,030,000",
      "tracks": [
        {
          "trackId": "alu_age",
          "type": "LinearMarkDisplay",
          "height": 200
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/alu_age/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The name and the divergence are two columns, the colour reads one and the height the other, and each colour groups by height.

maxBpPerPx is the last key, and the next step is what it is for: the mark draws only while the view is narrower than that many base pairs per pixel. Hovering a bar reads out its value and its lineage, and clicking one opens the row.

Zooming out: copies per bin#

Ten megabases of the same arm holds thousands of copies, and a bar per copy is a pixel or less wide. A second mark takes over at that width. Its transform snaps each copy to a bin, then folds each bin's copies into one feature carrying their count, and its encoding plots that count. "step": "auto" picks the bin width from the zoom, so the bars stay a few pixels wide however far you zoom out, and minBpPerPx hands the view over from the first mark at exactly the width where that one switches off.

The question the first figure raised, where the young copies sit, starts as a third mark: the same bin and count, over only the copies a filter step admits, drawn over the total in AluY's colour.

"marks": [
  {
    "shape": "bar",
    "transform": [
      { "type": "formula", "expr": "jexl:substring(feature.name, 0, 4)", "as": ["lineage"] }
    ],
    "encoding": {
      "y": "milliDiv",
      "color": { "field": "lineage", "scale": "categorical" }
    },
    "maxBpPerPx": 100
  },
  {
    "shape": "bar",
    "transform": [
      { "type": "bin", "step": "auto" },
      { "type": "aggregate", "groupby": ["start", "end"], "ops": [{ "op": "count" }] }
    ],
    "encoding": { "y": "count", "color": "#c0c0c0" },
    "minBpPerPx": 100
  },
  {
    "shape": "bar",
    "transform": [
      { "type": "filter", "expr": "jexl:startsWith(feature.name, 'AluY')" },
      { "type": "bin", "step": "auto" },
      { "type": "aggregate", "groupby": ["start", "end"], "ops": [{ "op": "count" }] }
    ],
    "encoding": { "y": "count", "color": "#d73027" },
    "minBpPerPx": 100
  }
]

The three marks share one fetch per region and one y-axis. At a given zoom only the marks in range draw, so the axis reads divergence zoomed in and counts zoomed out, and the legend is gone at the wide zoom because the marks drawing there have constant colours.

The AluY count is a thin red strip under a grey total that swings by several fold, and whether the strip follows the swings is not something an eye can settle from two counts on one axis. The share of copies that are young can, and the next two sections build it.

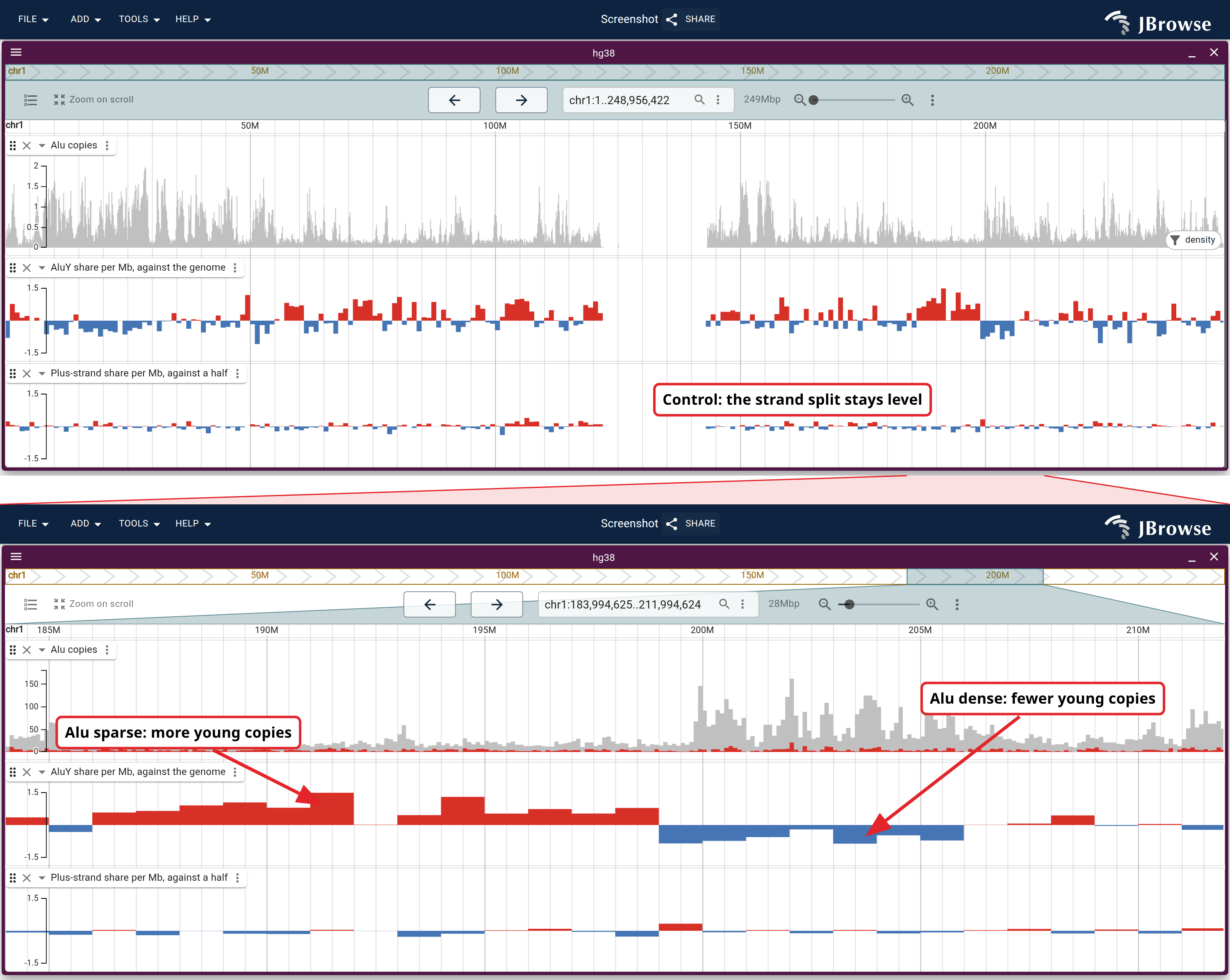

The whole chromosome: past the fetch budget#

Zoom out to all of chromosome 1 and the fetch is over budget: the track would have to download every row to count them, and a feature track stops at the estimate and shows a banner. A density sidecar is the way through, a bigWig of feature starts per kilobase that jbrowse make-density writes beside the file, once:

# writes Alu.bed.density.bw beside the input, in 1 kb bins
# --assembly reads the reference lengths off the FASTA's .fai;
#   --chrom-sizes takes a two-column name and length table instead
jbrowse make-density Alu.bed.gz --assembly hg38.fa

Two additions attach it. The adapter gains a densityAdapter over the sidecar, and the count mark gains "source": "density": past the budget that mark draws the sidecar's bins in place of the count it can no longer compute, over the same axis and with the same hover. The AluY mark has no sidecar and draws nothing there.

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.density.bw"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        },
        {
          "shape": "bar",
          "source": "density",
          "transform": [
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#c0c0c0" },
          "minBpPerPx": 100
        },
        {
          "shape": "bar",
          "transform": [
            {
              "type": "filter",
              "expr": "jexl:startsWith(feature.name, 'AluY')"
            },
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#d73027" },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.density.bw"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        },
        {
          "shape": "bar",
          "source": "density",
          "transform": [
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#c0c0c0" },
          "minBpPerPx": 100
        },
        {
          "shape": "bar",
          "transform": [
            {
              "type": "filter",
              "expr": "jexl:startsWith(feature.name, '\''AluY'\'')"
            },
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#d73027" },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.density.bw"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        },
        {
          "shape": "bar",
          "source": "density",
          "transform": [
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#c0c0c0" },
          "minBpPerPx": 100
        },
        {
          "shape": "bar",
          "transform": [
            {
              "type": "filter",
              "expr": "jexl:startsWith(feature.name, 'AluY')"
            },
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#d73027" },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}

A track with a sidecar carries a Density band entry in its track menu, with Automatic, Features only and Density only, so the swap can be held or forced by hand.

The young share per megabase#

The share is a ratio of two counts, and the sidecar only carries one of them, so a short script computes it for the whole genome: per megabase, the copies of the three Alu lineages, the AluY copies among them, and the copies on the plus strand. It writes them as a BED, one row per megabase, with two log2 columns: the megabase's young share against the genome-wide young share, and its plus-strand share against a half. The strand split is the control. Nothing about where Alu is dense should tilt which strand a copy landed on, so that column ought to come out flat wherever the young share does not.

# columns: copies, young, plus, youngShare, youngLog2, strandLog2, one row per
# 1 Mb bin holding at least 50 copies; prints the rank correlation of each share
# against copies per bin
python3 alu_young_share.py Alu.bed.gz Alu.young_share.bed AluY
bgzip -f Alu.young_share.bed
tabix -f -p bed Alu.young_share.bed.gz

Each column is one mark track over that file. The bar grows from zero, so youngLog2 above the axis is a megabase richer in young copies than the genome and below it one poorer, and a jexl colour paints the two directions apart. Both tracks pin the same domain, so the strand lane's flatness reads against the young share's swing on one scale.

{
  "type": "FeatureTrack",
  "trackId": "alu_young_share",
  "name": "AluY share per Mb, against the genome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_young_share-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "encoding": {
            "y": { "field": "youngLog2", "domain": ["-1.5", "1.5"] },
            "color": "jexl:feature.youngLog2 > 0 ? '#d73027' : '#4575b4'"
          }
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_young_share",
  "name": "AluY share per Mb, against the genome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_young_share-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "encoding": {
            "y": { "field": "youngLog2", "domain": ["-1.5", "1.5"] },
            "color": "jexl:feature.youngLog2 > 0 ? '\''#d73027'\'' : '\''#4575b4'\''"
          }
        }
      ]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "alu_young_share",
  "name": "AluY share per Mb, against the genome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_young_share-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "encoding": {
            "y": { "field": "youngLog2", "domain": ["-1.5", "1.5"] },
            "color": "jexl:feature.youngLog2 > 0 ? '#d73027' : '#4575b4'"
          }
        }
      ]
    }
  ]
}

The strand track is the same config with strandLog2 in both places.

✕

Do it yourselfIn DesktopSession specIn a notebookWith an agent

The steps behind the figure above, run against your own data.

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses hg38, loaded from a .2bit genome.
2. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Alu copies”.
3. Drag the bar at the bottom edge of the track to resize it.“Alu copies”.
4. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “AluY share per Mb, against the genome”.
5. Drag the bar at the bottom edge of the track to resize it.“AluY share per Mb, against the genome”.
6. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Plus-strand share per Mb, against a half”.
7. Drag the bar at the bottom edge of the track to resize it.“Plus-strand share per Mb, against a half”.
8. Type your region of interest into the location box and press Enter.This figure is at chr1.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

Copy

https://jbrowse.org/code/jb2/main/?config=test_data%2Falu_age%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr1%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22alu_age%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A110%7D%2C%7B%22trackId%22%3A%22alu_young_share%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A90%7D%2C%7B%22trackId%22%3A%22alu_strand_share%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A90%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+alu_age%2Fchromosome

This session spec pastes after &session=spec- on any JBrowse Web instance.

Copy

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1",
      "tracks": [
        {
          "trackId": "alu_age",
          "type": "LinearMarkDisplay",
          "height": 110
        },
        {
          "trackId": "alu_young_share",
          "type": "LinearMarkDisplay",
          "height": 90
        },
        {
          "trackId": "alu_strand_share",
          "type": "LinearMarkDisplay",
          "height": 90
        }
      ]
    }
  ]
}

Loaded against config: test_data/alu_age/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

Copy

from jbrowse_anywidget import LinearGenomeView, fetch_hub

view = LinearGenomeView(
    assembly=fetch_hub("hg38"),
    location="chr1",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

Copy

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1",
      "tracks": [
        {
          "trackId": "alu_age",
          "type": "LinearMarkDisplay",
          "height": 110
        },
        {
          "trackId": "alu_young_share",
          "type": "LinearMarkDisplay",
          "height": 90
        },
        {
          "trackId": "alu_strand_share",
          "type": "LinearMarkDisplay",
          "height": 90
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/alu_age/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

✕

Do it yourselfIn DesktopSession specIn a notebookWith an agent

The steps behind the figure above, run against your own data.

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses hg38, loaded from a .2bit genome.
2. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Alu copies”.
3. Drag the bar at the bottom edge of the track to resize it.“Alu copies”.
4. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “AluY share per Mb, against the genome”.
5. Drag the bar at the bottom edge of the track to resize it.“AluY share per Mb, against the genome”.
6. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Plus-strand share per Mb, against a half”.
7. Drag the bar at the bottom edge of the track to resize it.“Plus-strand share per Mb, against a half”.
8. Type your region of interest into the location box and press Enter.This figure is at chr1:184000001-212000000.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

Copy

https://jbrowse.org/code/jb2/main/?config=test_data%2Falu_age%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr1%3A184000001-212000000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22alu_age%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A110%7D%2C%7B%22trackId%22%3A%22alu_young_share%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A90%7D%2C%7B%22trackId%22%3A%22alu_strand_share%22%2C%22type%22%3A%22LinearMarkDisplay%22%2C%22height%22%3A90%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+alu_age%2Fbinned

This session spec pastes after &session=spec- on any JBrowse Web instance.

Copy

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:184000001-212000000",
      "tracks": [
        {
          "trackId": "alu_age",
          "type": "LinearMarkDisplay",
          "height": 110
        },
        {
          "trackId": "alu_young_share",
          "type": "LinearMarkDisplay",
          "height": 90
        },
        {
          "trackId": "alu_strand_share",
          "type": "LinearMarkDisplay",
          "height": 90
        }
      ]
    }
  ]
}

Loaded against config: test_data/alu_age/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

Copy

from jbrowse_anywidget import LinearGenomeView, fetch_hub

view = LinearGenomeView(
    assembly=fetch_hub("hg38"),
    location="chr1:184000001-212000000",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["hg38"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

Copy

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:184000001-212000000",
      "tracks": [
        {
          "trackId": "alu_age",
          "type": "LinearMarkDisplay",
          "height": 110
        },
        {
          "trackId": "alu_young_share",
          "type": "LinearMarkDisplay",
          "height": 90
        },
        {
          "trackId": "alu_strand_share",
          "type": "LinearMarkDisplay",
          "height": 90
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/alu_age/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Where the grey is low the young share runs red, and where the grey piles up it turns blue; under the wedge the switch happens where the Alu-sparse megabases give way to the dense ones. The strand lane stays level across both. Older Alu copies are known to concentrate in GC-rich, gene-rich DNA, and the youngest have had the least time to.

Is the pattern more than noise#

One megabase's young share can swing by chance, so no single bar is the test. The test is the trend across every megabase of the genome, which alu_young_share.py prints as a Spearman rank correlation between each share and the copies per megabase:

The young share falls as the copies rise, across the genome and not only on the arm in the figure, and the control split shows no trend at all over the same bins.¹

Checking the bars against the rows#

The first figure is a claim about a window, so read the same window out of the file. tabix returns the rows, and the name's first four characters and the milliDiv column are what the track drew:

tabix https://jbrowse.org/demos/gene_density/Alu.bed.gz chr1:151,000,000-151,030,000 |
  awk -F'\t' '{ l = substr($4, 1, 4); n[l]++; s[l] += $12 }
    END { for (l in n) printf "%s\t%d copies\tmean milliDiv %.0f\n", l, n[l], s[l] / n[l] }'

The lineages order by mean divergence the way their bars ordered by height, and the fossil monomers sit with the oldest Alu lineage.

The share bars under the wedge are counts of the same rows, so count one red megabase and one blue one straight out of the Alu file, keeping the copies that start inside it:

tabix https://jbrowse.org/demos/gene_density/Alu.bed.gz chr1:191,000,001-192,000,000 |
  awk -F'\t' '$2 >= 191000000 && $4 ~ /^Alu[JSY]/ { n++; y += ($4 ~ /^AluY/) }
    END { print n " copies, " y " AluY" }'

The dense megabase holds several times the copies and still fewer AluY copies, which is the blue bar.

Reproduce it end to end#

Every step above is wrapped in one script, build_alu_age.sh:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_alu_age.sh
bash build_alu_age.sh                     # builds ./alu_age_build/jbrowse2
npx --yes serve alu_age_build/jbrowse2    # then open the printed URL

With no arguments it fetches UCSC's hg38 RepeatMasker table, cuts the Alu rows out of it, indexes them, builds the sidecar and the per-megabase shares, prints the two correlations, and writes a JBrowse with the tracks above. Given your own RepeatMasker BED and the FASTA it was masked against, bash build_alu_age.sh rmsk.bed.gz genome.fa, it builds the same track over your file; FAMILY and YOUNG in the environment pick another family and its youngest lineage. The tools it needs are the ones under Prerequisites.

See also#

• Mark display
• Gene density and transposon density along a chromosome
• RepeatMasker as one lane per class
• JBrowse web quick start

References#

• Batzer MA, Deininger PL. Alu repeats and human genomic diversity. Nature Reviews Genetics 3:370-379 (2002), the subfamily lineages and their ages.
• Lander et al. (2001). Initial sequencing and analysis of the human genome, where the distribution of young against old Alu copies along the genome was first described.
• Smit, Hubley and Green (2013-2015). RepeatMasker Open-4.0

Feedback on this tutorial is welcome: contact us.
